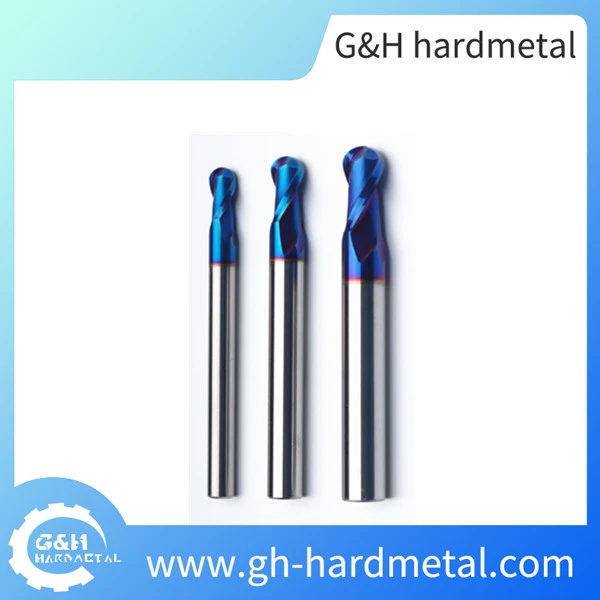

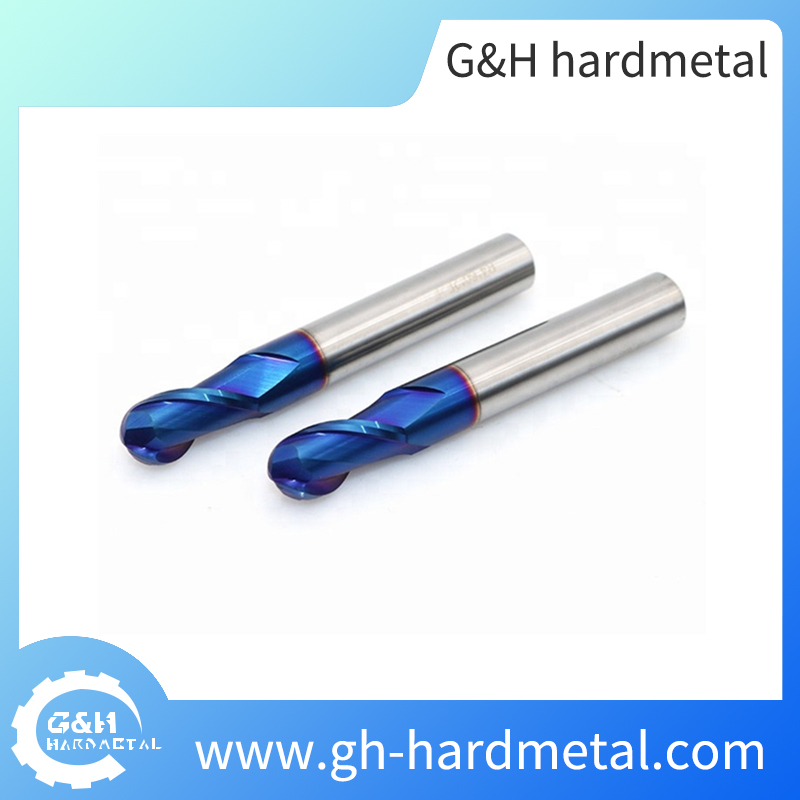

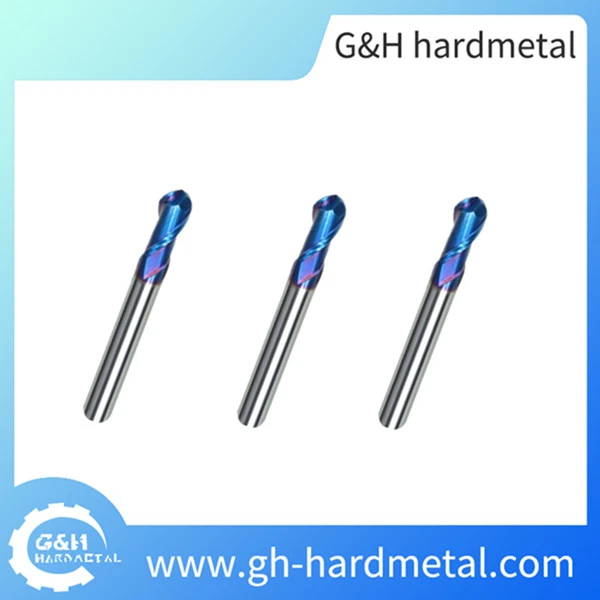

- Material: Solid Carbide
- Tooth Form: 2 Flutes
- Type: Cutting Tool
- Customized: Customized
description
Standard Sizes:
Cutter Diameter | Flute Length | Over length | Radius | Shank Diameter | Flutes |
Φ1 | 2.5 | 50 | 0.5 | Φ4 | 2 |
Φ1.5 | 3 | 50 | 0.75 | Φ4 | 2 |
Φ2 | 4 | 50 | 1 | Φ4 | 2 |
Φ2.5 | 5 | 50 | 1.25 | Φ4 | 2 |
Φ3 | 6 | 50 | 1.5 | Φ4 | 2 |
Φ3.5 | 6 | 50 | 1.75 | Φ4 | 2 |
Φ4 | 8 | 50/75/100 | 2 | Φ4 | 2/4 |
Φ5 | 10 | 50/75/100 | 2.5 | Φ5 | 2/4 |
Φ6 | 12 | 50/75/100/150 | 3 | Φ6 | 2/4 |
Φ8 | 16 | 60/75/100/150 | 4 | Φ8 | 2/4 |
Φ10 | 20 | 75/100/150 | 5 | Φ10 | 2/4/6 |
Φ12 | 24 | 75/100/150 | 6 | Φ12 | 2/4/6 |
Φ14 | 28 | 80/100/150 | 7 | Φ14 | 2/4/6 |
Φ16 | 32 | 100/150 | 8 | Φ16 | 2/4/6/8 |
Φ18 | 36 | 100/150 | 9 | Φ18 | 2/4/6/8 |
Φ20 | 40 | 100/150 | 10 | Φ20 | 2/4/6/8 |
End mill working parameters:
Grade | HRC of end mill | Corresponding Coating | Materials to be cut |
GH10 | HRC45 | AITiN | For Cutting the materials under HRC38 |
GH12 | HRC55 | TiXCO | For Cutting the materials under HRC50 |
GH40 | HRC60 | TiSIN | For Cutting the materials under HRC55 |
GH41 | HRC65 | NACo | For Cutting the materials under HRC63 |
Coating
Item | AlTiN | TiAIN | TiSiN | NACo |
Hardness(HV) | 3200 | 2800 | 3600 | 4000 |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
Oxidation Temp(°) | 900 | 900 | 1000 | 1200 |
Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
Color | Black | Violet | Copper | Blue |
Delivery time
For samples: 3 - 5 days
For formal orders:7 - 10 days
Payment
T/T, Western Union, PayPal, Money Gram, etc.
Payment≤1000 dollars, 100% in advance. Payment≥10000 dollars, 30% T/T in advance ,balance before shipment.
Packing
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
Shipment
DHL, FedEx, TNT, UPS, EMS, etc.
Any port in China.
